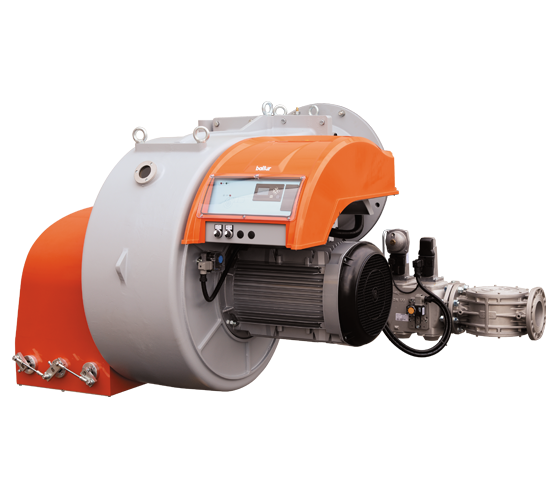

TBG 1200 ME V CO 60Hz - Burners Baltur

TBG 1200 ME V CO 60Hz

Code 67265417

Progressive/modulating two-stage gas burners with electronic cam and CO control

  • Due stadi progressivi di potenza
  • Camma elettronica
  • Residual carbon monoxide (CO) monitoring
Technical data
Fuel
Natural Gas
Operation
Electronic Modulation
Minimum Thermal Power (kW) to ErP
1200
Maximum Thermal Power (kW) to ErP
12000
Min flow rate (Sm³/H)
127
Max flow rate (Sm³/H)
1270
Electric power supply type
AC
No. of Phases
3N
Power Supply Voltage (V)
380
Power Supply Frequency (Hz)
60
Fan Motor Power (kW)
22
Weight with packaging (kg)
689
Width (mm)
1950
Depth (mm)
1680
Height (mm)
1300
Technical Descriptions
Gas burner compliant with European standard EN676. Electronic operation at two progressive stages.
Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).
Modulation ratio 01:10-
Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 3.
Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
Fully closing air damper on shutdown to avoid loss of heat through the chimney.
Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
Fixed boiler coupling flange.
Easy maintenance thanks to the two-sides hinge which allows the removal of the combustion head without having to remove the burner from the boiler.
Device made of sound-absorbing material to reduce fan noise.
CE version gas train is complete with butterfly valve, operation and safety valve with electromagnetic drive, valve tightness control, minimum pressure switch, pressure regulator and gas filter.
Fail proof connectors for burner/gas train connection
Gas train exit: low.
Flame detection by ionisation electrode with connector for micro amp meter.
Control panel with display diagram for working mode with indication lights .
Terminal board for the electric and thermostatic connections to the burner.
Terminal board for second stage operation or for the connection of the PID electronic regulator.
Electrical system with protection rating IP54.
Operating range

This product is part of the range TBG ME V CO
