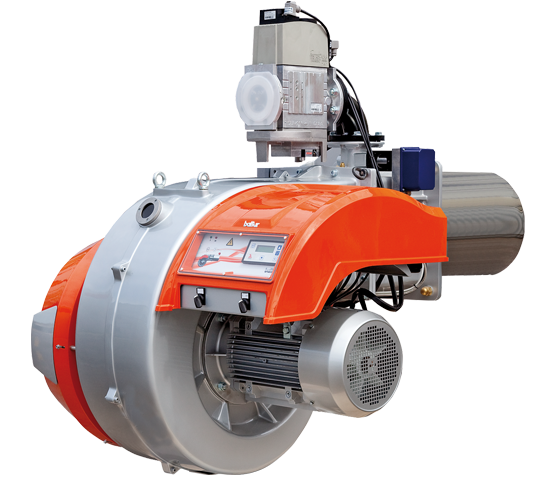

TBG 800 ME V CO 50Hz
Progressive/modulating two-stage gas burners with low polluting emissions with electronic cam.
- Two-stage progressive.
- Electronic modulating control.
- Low NOx emissions.
Minimum Thermal Power (kW) to ErP
Maximum Thermal Power (kW) to ErP
Electric power supply type
Power Supply Frequency (Hz)
Weight with packaging (kg)
Gas burner compliant with European standard EN676. Electronic operation at two progressive stages.
Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).
Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 2.
Regulating combustion air and blast-pipe.
Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
Combustion air intake designed to achieve optimum linearity of the air gate opening.
Fully closing air damper on shutdown to avoid loss of heat through the chimney.
Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
Easy maintenance thanks to the two-sides hinge which allows the removal of the combustion head without having to remove the burner from the boiler.
Device made of sound-absorbing material to reduce fan noise.
CE version gas train is complete with butterfly valve, operation and safety valve with electromagnetic drive, valve tightness control, minimum pressure switch, pressure regulator and gas filter.
Fail proof connectors for burner/gas train connection
Gas train exit: high/low.
Flame detection by ionisation electrode with connector for micro amp meter.
Control panel equipped either with display showing the working process and with the keyboard for the burner adjustment.
Electric control board in light alluminum alloy with IP55 protection rating
7-pole socket for burner electric and thermostatic supply.
4-pole socket for second stage control or for the connection of the PID electronic regulator.
Electrical system with protection rating IP44.
Use and maintenance manual
