22/11/2022

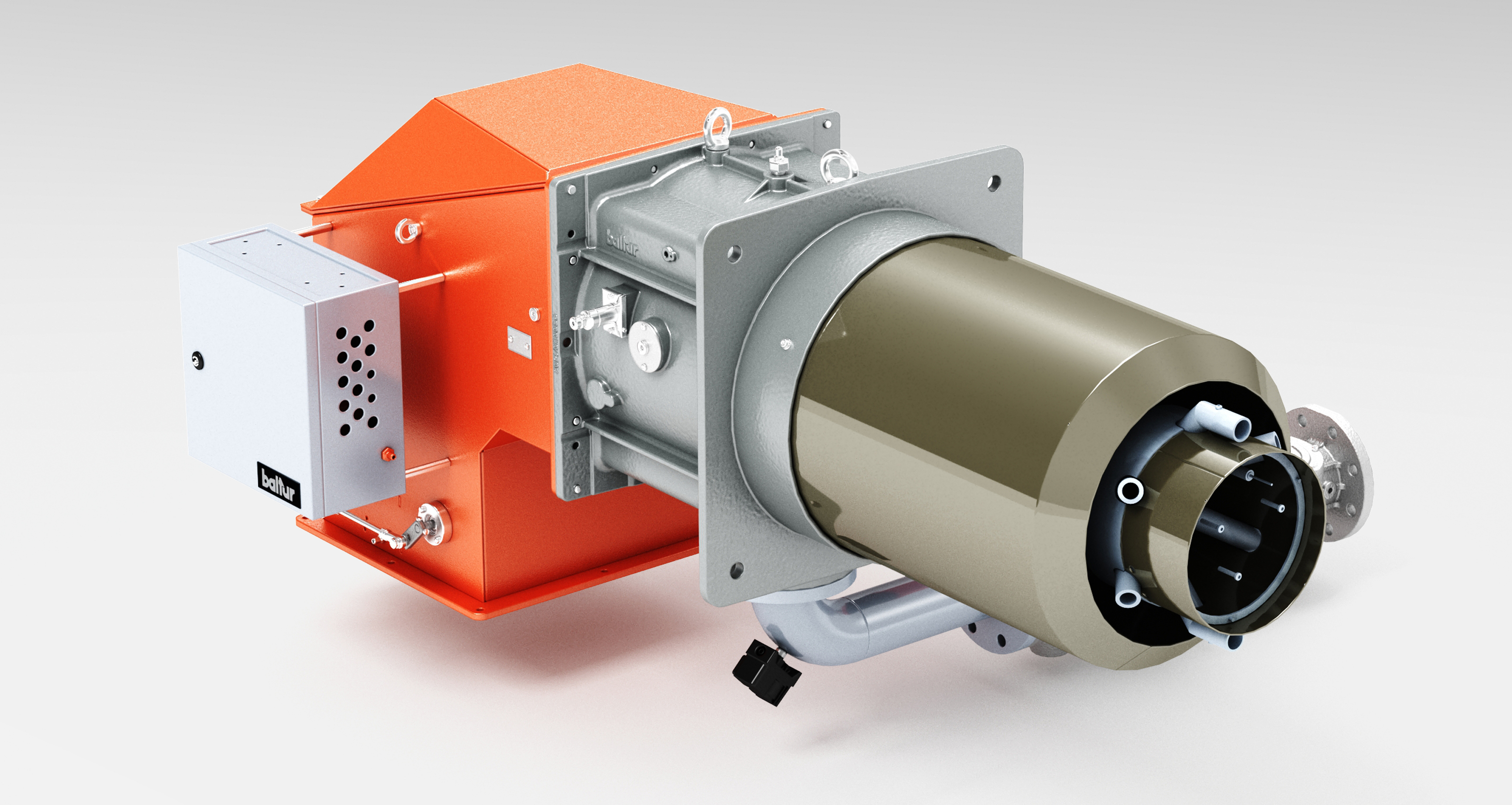

Industrial Burners with separated fan

Industrial Burners with separated fan 1

The IB burner series has been designed to meet the most demanding request of industrial applications.

The modular design concept allow for the maximum flexibility of configuration enabling the IB burnert to be the optimal solution for avariety of industrial applications.

The IB is composed by different functional blocks:

  • Combustion head
  • Ventilating unit
  • Control panel
  • Gas valve train (for gas aplications)
  • Pumping skid (for liquid fuel applications)



FLEXIBLE SOLUTIONS FOR DIFFERENT APPLICATIONS

HIGH MODULATION RATIO:
The IB series features modulation ratios of 1:10. This extremely reduces the number of burner ignitions and grants high operation efficiency and low polluting emissions.

LOW COMBUSTION HEAD LOSSES:
Thanks to the new combustion heads, designed to limit air flow losses to the minimum, the IB series burners allow a reduction of fan power and therefore lower cost of investment and operating costs.

ENERGY SAVING:
The electronic version is equipped with electronic control that allow a precise regulation of the air-gas mix optimising energy consumption.

EASY MAINTENANCE:
Maintenance operations are quick and easy. The large lid opening grants total accessibility to the mixing head and internal components.

COMBUSTION AIR TEMPERATURE:
Standard construction up to 50°C. Special construction for temperatures up to 250°C.

AIR INLET POSITION:
Combustion air may be let in from above, below, right or left.



NEW TECHNOLOGIES, LOW EMISSIONS OF THE OXIDES OF NITROGEN

  • LOW NOX TECHNOLOGY (IB 100-2400)
  • SUPER LOW NOX TECHNOLOGY (IB 100-850)
  • LOW NOX WITH SYSTEM FGR (IB 100-2400)
