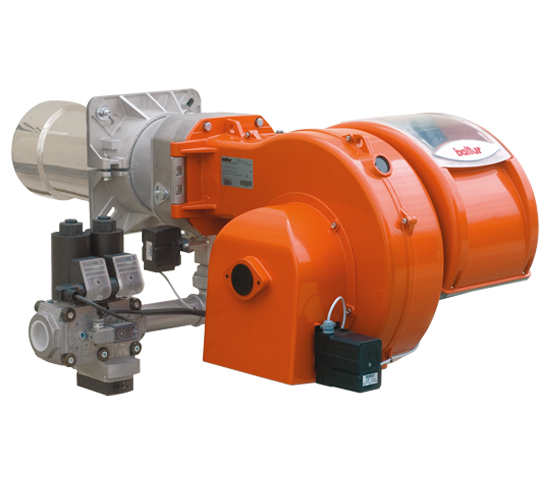

TBG 200 LX ME V CO 50Hz - Burners Baltur

TBG 200 LX ME V CO 50Hz

Code 17740027

Progressive/modulating two-stage gas burners with low polluting emissions with electronic cam.

  • Two-stage progressive.
  • Electronic modulating control.
  • Low NOx emissions.
Technical data
Fuel
Natural Gas
Operation
Electronic Modulation
Minimum Thermal Power (kW) to ErP
475
Maximum Thermal Power (kW) to ErP
1900
Min flow rate (Sm³/H)
50
Max flow rate (Sm³/H)
201
Electric power supply type
AC
No. of Phases
3N
Power Supply Voltage (V)
400
Power Supply Frequency (Hz)
50
Fan Motor Power (kW)
3
Weight with packaging (kg)
134
Width (mm)
1530
Depth (mm)
760
Height (mm)
700
One or more errors occurred.
Operating range

This product is part of the range TBG LX ME V CO

Discover the entire series
