Series MCS
Outdoor condensation modular thermal unit
- Ultra-high thermal performance.
- Forced air double burner with total premixing with very low NOx and CO emission.
- Management of element cascade.
- Home
- Products
- Heating
- High-power thermal systems
- Serie MCS

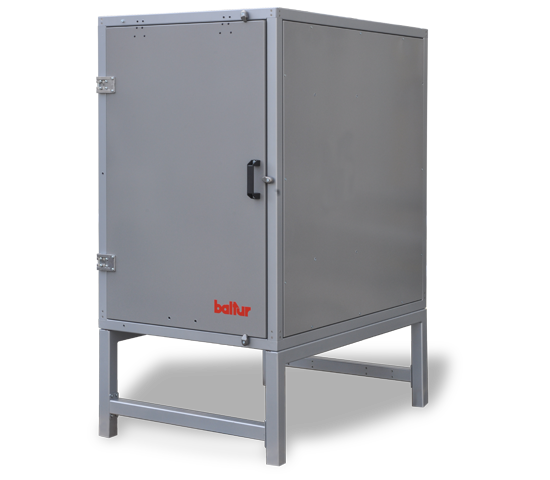

Series MCS
- Thermal unit consisting of a self-supporting frame protected through a cataphoresis treatment and subsequent painting with casing in treated steel to ensure outdoor resistance.
- The casing features an internal 20 mm thick stiferite insulation coated with aluminium film.
- Thermal modules consist of:
- a thermal element (condensing heat generator) preset for operation at scrolling (variable) temperature;
- preset for DHW production;
- system delivery and return threaded and insulated steel manifolds;
- gas manifold;
- manifold for the condensate draining of each individual thermal element. - Thermal element, with boiler body consisting of:
- stainless steel primary heat exchanger;
- double forced air burner with total premixing with very low NOx and CO emissions;
- double gas solenoid safety valve with constant air to gas ratio (pneumatic);
- high head electric fan for flue gas exhaust with electronic speed control;
- ErP modulating high head circulation pump (vers. “NP” excluded);
- degassing chamber with automatic air vent valve;
- safety differential water circulation pressure switch; - Energy efficiency compliant to Regulation 813/2013/EU.
- NOx Class 6 according to
- UNI EN 15502-1.
- IPX4D electrical power.
- Internal instrument panel, with electronic microprocessor control and ignition board.
- Cascade management of burners.
- 0-10V power control supplied as standard.
- Approved safety, protection and control devices (INAIL) installed inside module and consisting of:
- 5.4 bar safety valve;
- operating and cut-out bithermostat;
- maximum pressure switch;
- minimum pressure switch;
- pressure gauge with pressure gauge holder cock;
- test thermometer with trap;
- fuel shut-off valve (optional). - Flow balancer kit.
- Modulating circulation pump with 0-10V control (vers. P3).
- DHW and external delivery probes supplied as standard.
PRODOTTI DI QUESTA SERIE:
Product code
Name
Minimum Thermal Power (kW) to ErP
Maximum Thermal Power (kW) to ErP
