Main features

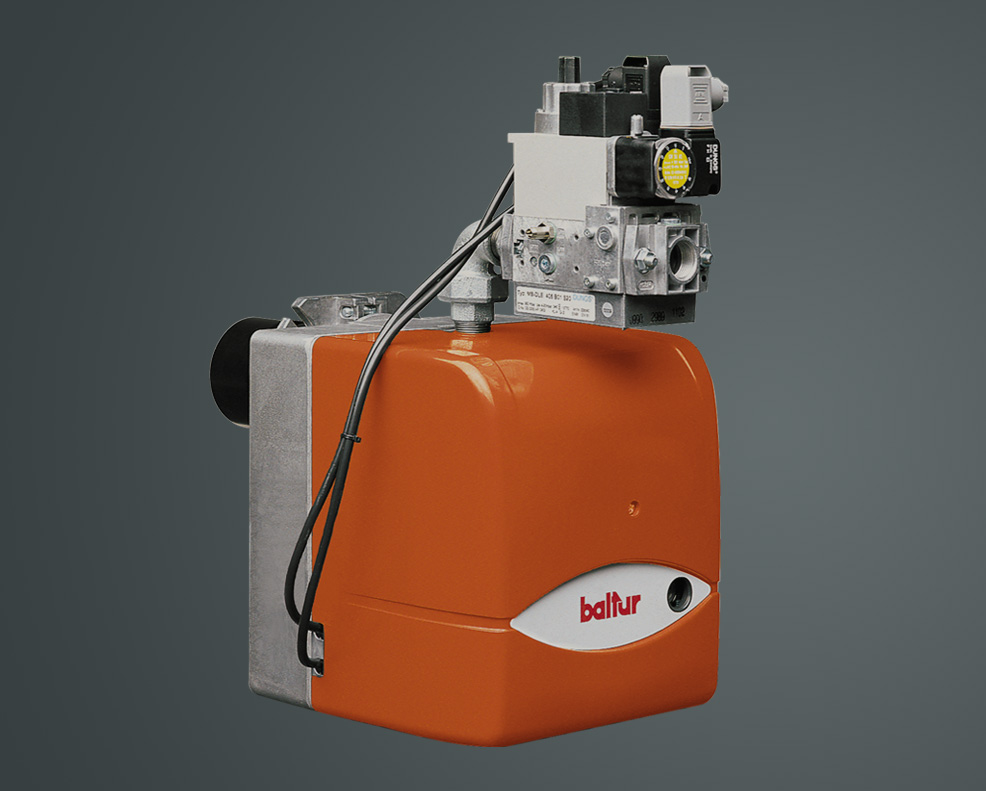

- Gas burner compliant with European standard EN676.
- Combustion air and combustion head regulation.
- Combustion air intake with throttle damper. Manual adjusting of the air flow rate.
- Air damper closing in pause to prevent any heat dispersion to the flue.
- Easy maintenance as the mixing unit can be removed without having to disassemble the burner from the boiler.
- Fixed generator coupling flange.
- Gas train in EC version consisting of an operating and safety valve with electro-magnetic operation, minimum pressure switch, pressure regulator and gas filter.
- Connection to gas train with fail safe connectors.
- Gas train exit: high.
- Protection cover made of sound proof plastic material.
- Flame presence control by means of a ionizing electrode prepared for microammeter connection.
- 7-pole plug for burner electric and thermostatic supply.
- Electrical system with protection rating IP40.
