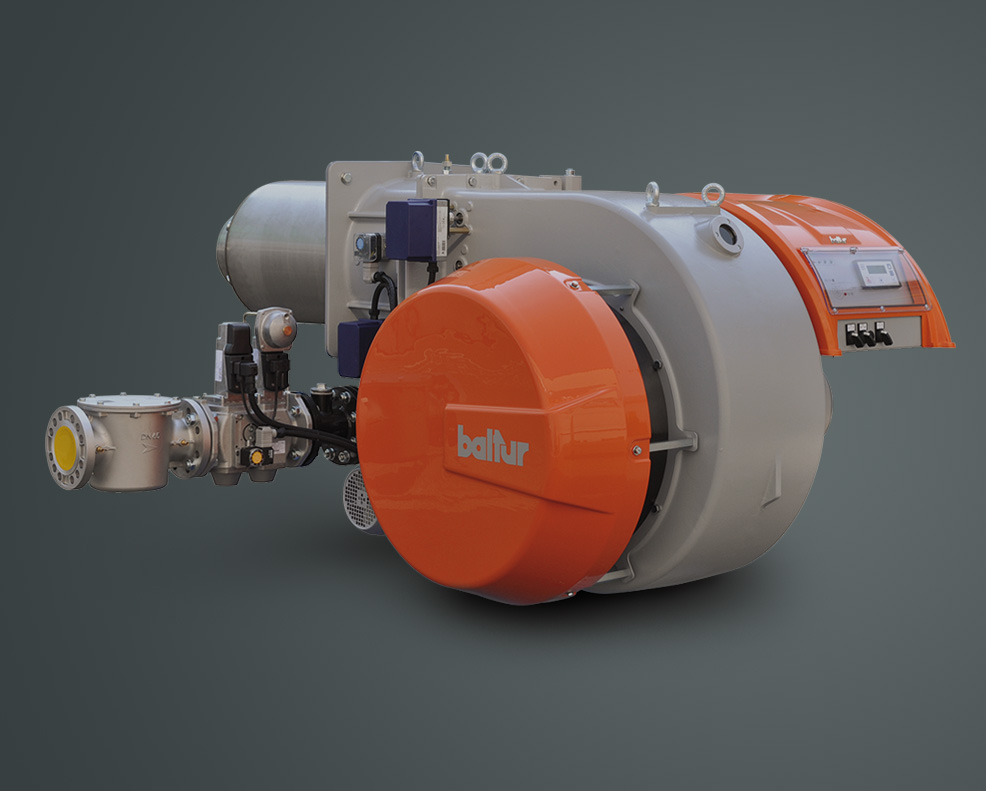

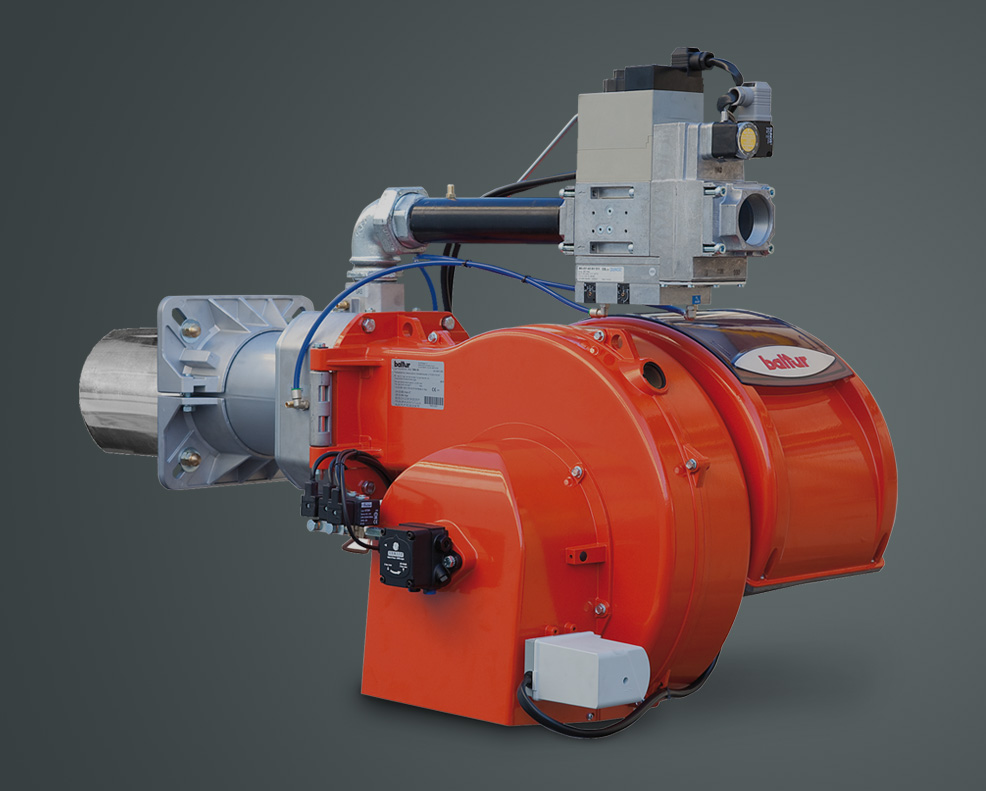

Modulating gas/light oil dual fuel burners with gas side electronic modulation, light oil side two-stage Power from 0.1 to 3.6 MW
Plus
Two progressive power stages (gas)
Two power stages (light oil)
Electronic cam
Alternative operation of the two fuels
Monoblock
Main features
Burner with alternate methane gas/light oil fuel supply, EC approved according to EN676 and EN267. Gas side modulating operation, light oil side two-stage
Gas side burner with low NOx and CO emissions in accordance with EN676: class 3.
light oil side burner with low NOx and CO emissions in accordance with EN267: class 2.
Combustion air and combustion head regulation.
Air flow adjustment with electric servomotor.
Sliding generator connection flange to adapt the head protrusion to the various types of heat generators.
Pump connected to the fan motor via electromagnetic clutch.
Fuel supply circuit comprising pump with pressure regulation, shut-off valves and safety valve.
