Main features

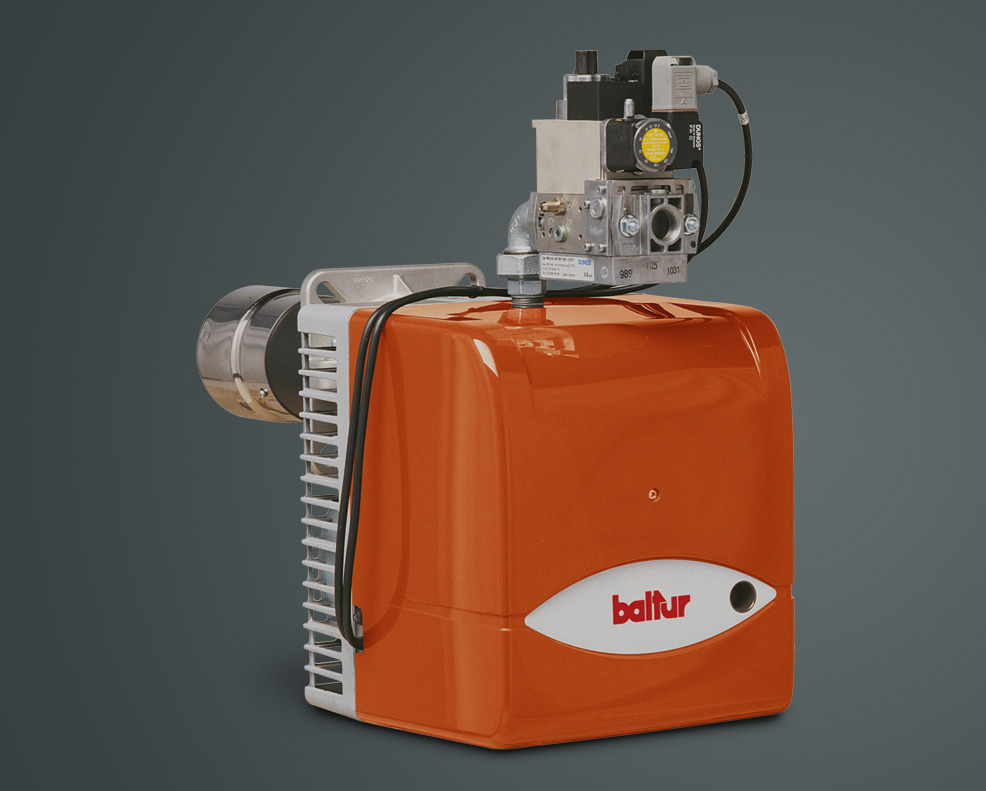

- Gas burner compliant with European standard EN676.
- Combustion air and combustion head regulation.
- Combustion air intake with throttle damper. Air flow adjustment with electric servomotor.
- Air damper closing in pause to prevent any heat dispersion to the flue.
- Easy maintenance as the mixing unit can be removed without having to disassemble the burner from the boiler.
- Sliding generator connection flange to adapt the head protrusion to the various types of heat generators.
- Gas train in EC version consisting of an operating and safety valve with electro-magnetic operation, minimum pressure switch, pressure regulator and gas filter.
- Possibility to integrate the burner with a kit for valve seal control.
- Connection to gas train with fail safe connectors.
- Gas train exit: high.
- Protection cover made of sound proof plastic material.
- Flame presence control by means of a ionizing electrode prepared for microammeter connection.
- 7-pole plug for burner electric and thermostatic supply.
- 4-pole plug for second operation stage control.
- Electrical system with protection rating IP40.
