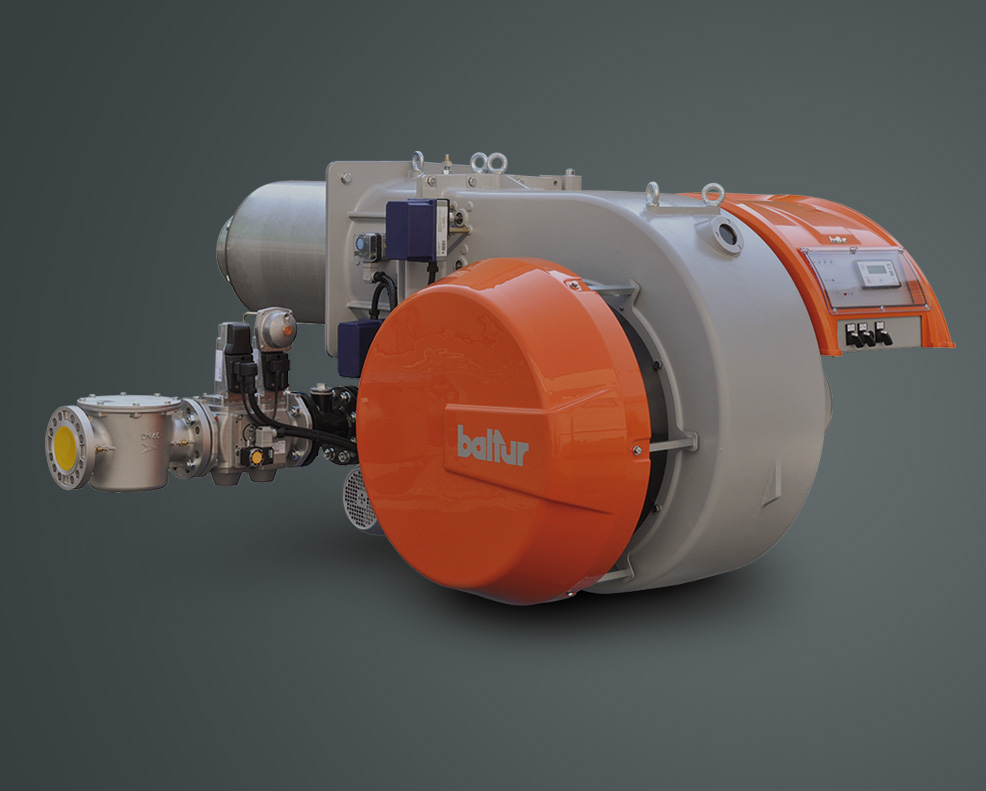

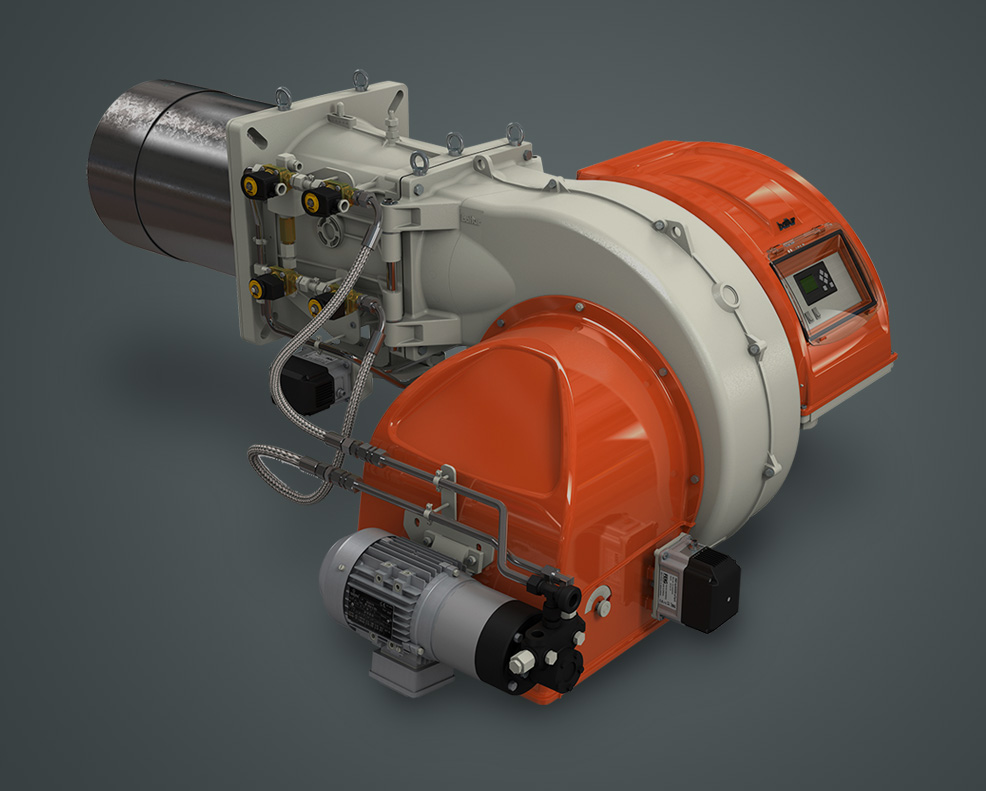

Electronic modulating gas/light oil dual fuel burners with inverter
Power from 0.6 to 20 MW

Main features

• Burner with alternate methane gas/light oil fuel supply, EC approved according to EN676 and EN267. Gas side modulating operation, light oil side two-stage
• Gas side burner in accordance with EN676: class 3.
• light oil side burner in accordance with EN267: class 2.
• Combustion air and combustion head regulation.
• Air flow adjustment with electric servomotor.
• Sliding generator connection flange to adapt the head to various types of generators.
• Pump connected to the fan motor via electromagnetic clutch.
• Fuel supply circuit comprising pump with pressure regulation, shut-off valves and safety valve.
• Manual fuel switching.
• Flame presence control with UV photocell.
• Adjustment of the number of revolutions of the fan through an inverter to obtain a reduction in noise and electricity consumption.
