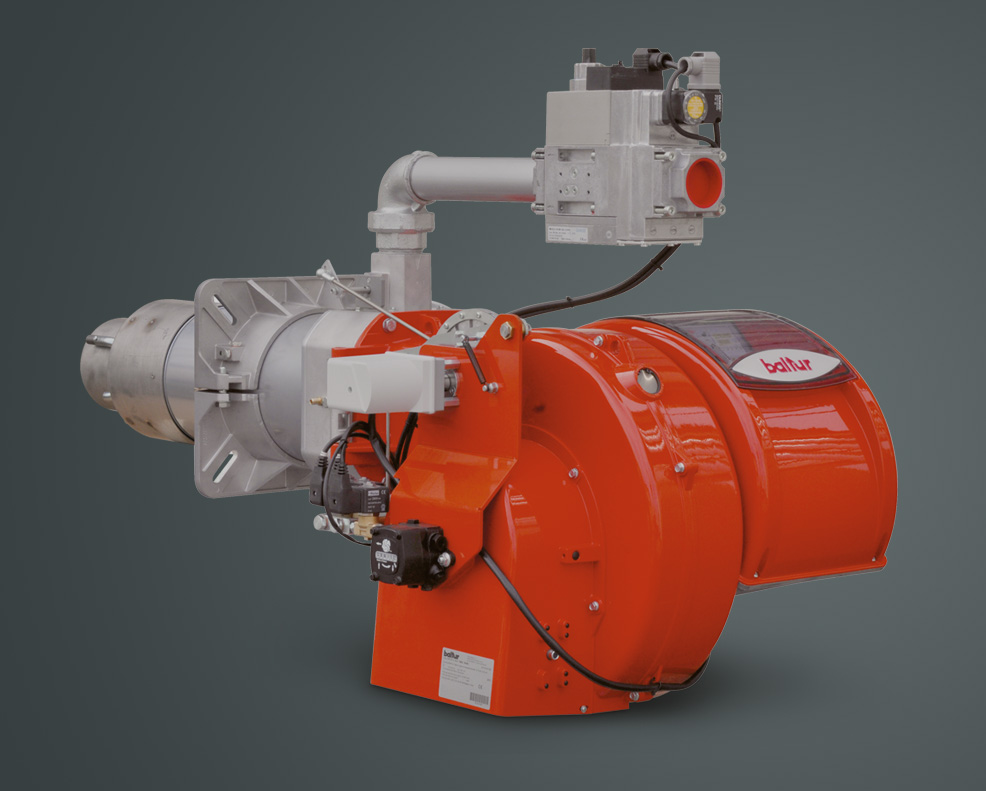

TBML MC
Progressive/modulating two-stage gas/light oil dual fuel burners with gas side mechanical cam, light oil side two-stage
Power from 0.18 to 3.6 MW
Plus
- Two progressive power stages (gas)
- Two power stages (light oil)
- Mechanical cam
- Alternative operation of the two fuels
- Monoblock
Main features
- Burner with alternate methane gas/light oil fuel supply, EC approved according to EN676 and EN267. Gas side progressive two-stage operation, light oil side two-stage
- Gas side burner with low NOx and CO emissions in accordance with EN676: class 3.
- light oil side burner with low NOx and CO emissions in accordance with EN267: class 2.
- Combustion air and combustion head regulation.
- Air flow adjustment with mechanical cam.
- Sliding generator connection flange to adapt the head protrusion to the various types of heat generators.
- Pump connected to the fan motor via electromagnetic clutch.
- Fuel supply circuit comprising pump with pressure regulation, shut-off valves and safety valve.
- Manual fuel switching.
- Flame presence control with UV photocell.
- IP55 electrical panel.
- IP54 electrical system
