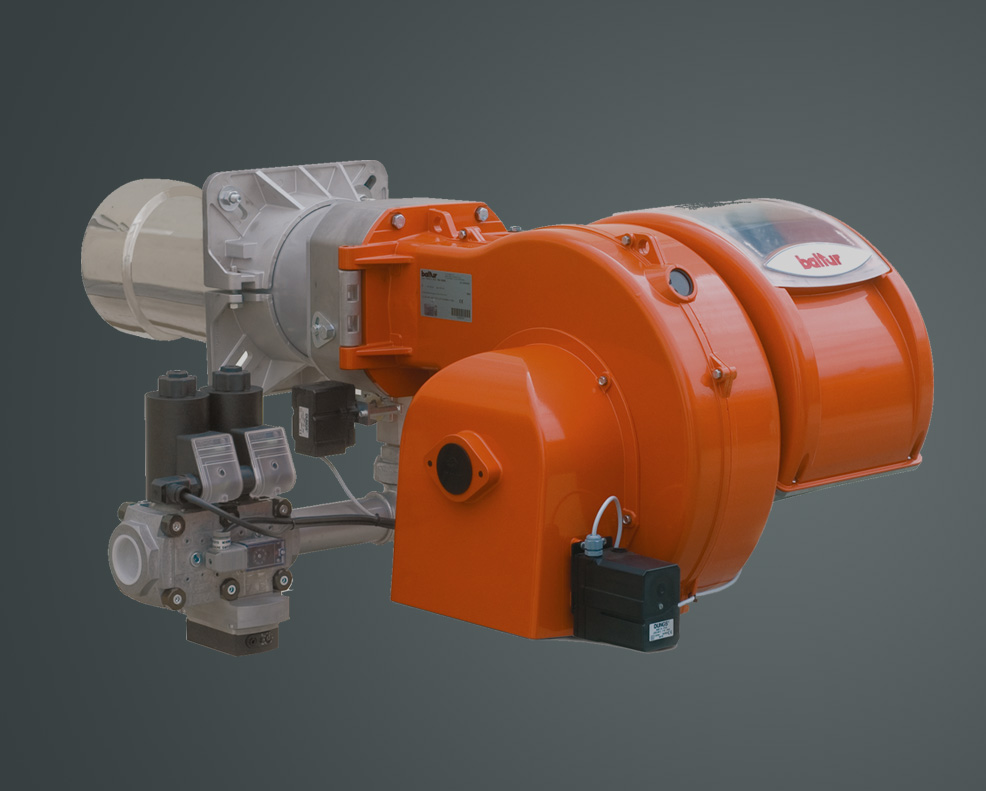

Electronic modulating gas burners with inverter
Power from 130 kW to 7,5 MW

Main features

• EC homologated gas burner according to EN676. Electronic modulation.
• Burner with low NOx and CO emissions in accordance with EN676: class 3.
• Combustion air and combustion head regulation.
• Air flow adjustment with electric servomotor.
• Sliding generator connection flange to adapt the head protrusion to the various types of heat generators.
• Flame detection by means of ionisation electrode
• IP55 electrical panel.
• IP54 electrical system. Adjustment of the number of revolutions of the fan through an inverter to obtain a noticeable reduction in noise and electricity consumption.
